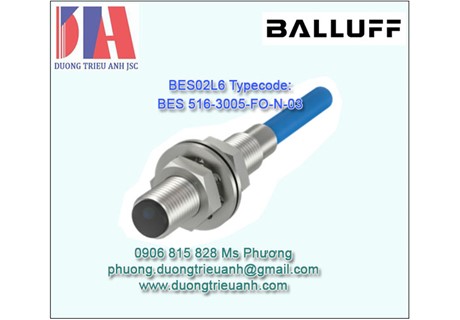

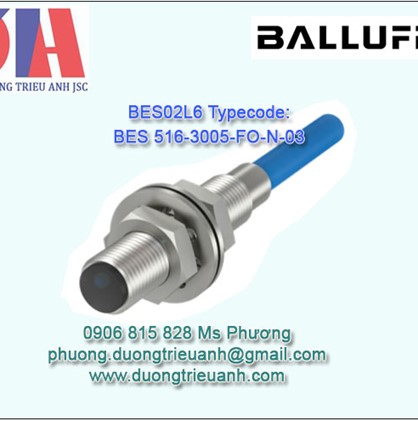

Balluff NAMUR sensors BES02L6 BES 516-3005-FO-N-03 | Cảm biến BES 516-3005-FO-N-03 Balluff
Balluff NAMUR sensors BES02L6 BES 516-3005-FO-N-03 | Cảm biến BES 516-3005-FO-N-03 Balluff
Giá :
Liên hệ
Cảm biến NAMUR BES02L6 BES 516-3005-FO-N-03 cảm ứng và bộ khuếch đại chuyển mạch giúp dễ dàng phát hiện các điều kiện bên trong các khu vực nhạy cảm theo cách không tiếp xúc. Các cảm biến được đặt bên trong khu vực làm việc và các bộ khuếch đại chuyển mạch được đặt bên ngoài. Điều này giúp ổn định quy trình.
Ngoài các phiên bản tiêu chuẩn, chúng tôi cũng cung cấp các biến thể áp suất cao để giám sát vị trí cuối trong xi lanh thủy lực hoặc để giám sát vị trí của van. Có các biến thể chống cháy nổ cho các hệ thống hoặc phòng nguy hiểm cháy nổ trong Khu 1 và 2. Ngoài ra, các mô hình đã được chứng minh có sẵn cho các ứng dụng trong ngành công nghiệp bán dẫn.
Dimension: Ø5 x 24.5mm
Style: M5x0.5
Installation for flush mounting
Range: 0.8mm
Interface: NAMUR
Switching frequency: 2000 Hz
Housing material: Stainless steel
Material sensing surface: PBT
Connection: Cable, 3.00 m, PVC
Operating voltage Ub: 7.7...9 VDC
Ambient temperature: -25...70 °C
IP rating: IP67
Approval/Conformity: CE, EAC, WEEE
Một số model thông dụng:
| BES02J9 | BES 516-326-S4-CW |
| BES02JA | BES 516-326-S4-W |
| BES02JE | BES 516-326-SA30-S4-CW |
| BES02JF | BES 516-326-SA96-S4-W |
| BES02JH | BES 516-327-S4-CW |
| BES02JJ | BES 516-327-S4-W |
| BES02JL | BES 516-327-SA96-S4-W |
| BES02JM | BES 516-356-S4-CW |
| BES02JN | BES 516-356-S4-W |
| BES02JP | BES 516-360-S4-CW |
| BES02JR | BES 516-360-S4-W |
| BES02JT | BES 516-362-S4-CW |
| BES02JU | BES 516-362-S4-W |
| BES02JW | BES M12MD1-PSC80E-S04G-W |
| BES02JY | BES M12MD1-PSC80E-S04G-W01 |
| BES02JZ | BES M12MF1-PSC30A-S04G-W |
| BES02K0 | BES M12MF1-PSC30A-S04G-W01 |
| BES02K1 | BES M12MI-PSC30B-S04G-W |
| BES02K2 | BES M12MI-PSC30B-S04G-W01 |
| BES02K3 | BES M12ML-PSC30A-S04G-W |
| BES02K4 | BES M12ML-PSC30A-S04G-W01 |
| BES02K5 | BES M12ML-PSC80E-S04G-W |
| BES02K6 | BES M12ML-PSC80E-S04G-W01 |
| BES02K8 | BES M18MD-PSC12E-S04G-W01 |
| BES02K9 | BES M18MF1-PSC50A-S04G-W |
| BES02KA | BES M18MF1-PSC50A-S04G-W01 |
| BES02KC | BES M18MI-PSC70B-S04G-W |
| BES02KE | BES M18MI-PSC70B-S04G-W01 |
| BES02KF | BES M18ML-PSC12E-S04G-W |
| BES02KH | BES M18ML-PSC12E-S04G-W01 |
| BES02KJ | BES M18ML-PSC50A-S04G-W |
| BES02KK | BES M18ML-PSC50A-S04G-W01 |
| BES02KM | BES M30ML-PSC10A-S04G-W |
| BES02KN | BES M30ML-PSC10A-S04G-W01 |
| BES02KP | BES M30ML-PSC20E-S04G-W |
| BES02L5 | BES 516-3005-E2-N-PU-00,35 |
| BES02L6 | BES 516-3005-FO-N-03 |
| BES02LA | BES 516-324-EO-N-03 |
| BES02LC | BES 516-325-E3-N-03 |
| BES02LE | BES 516-325-E3-N-PU-05 |
| BES02LL | BES 516-327-E3-N-PU-05 |
| BES02LN | BES 516-349-SA2 |
| BES02LW | BES 516-371-SA3-03 |
| BES02LY | BES 516-371-SA3-05 |
| BES02M3 | BES 113-3019-SA1-PU-03 |
| BES02M4 | BES 113-3019-SA1-PU-05 |
| BES02M5 | BES 113-3019-SA1-S4 |
| BES02M7 | BES 113-325-SA7-S4 |
| BES02M8 | BES 113-356-SA31-S4 |
| BES02M9 | BES 113-356-SA6-PU-03 |
| BES02MC | BES 113-356-SA6-S4 |
| BES02ME | BES 113-370-SA2-S4 |
| BES02MH | BES 516-100-S18 |
| BES02ML | BES 517-108-RK |
| BES02MM | BES 517-110-RK |
| BES02MN | BES 517-142-Y-RK |
| BES02MP | BES 517-300-S100-Y |
| BES02MR | BES 517-300-S103-Y |
| BES02N3 | BES M08EH1-NSC20B-S04G-S |
| BES02N4 | BES M08EH1-NSC20B-S04G-S01 |
| BES02N5 | BES M08EH1-PSC20B-S04G-S |
| BES02N6 | BES M08EH1-PSC20B-S04G-S01 |
| BES02N8 | BES M12EI-NSC40B-S04G-S |
| BES02N9 | BES M12EI-NSC40B-S04G-S01 |
| BES02NA | BES M12EI-PSC40B-S04G-S |
| BES02NC | BES M12EI-PSC40B-S04G-S01 |
| BES02NF | BES M18EI-NSC72B-S04G-S |
| BES02NH | BES M18EI-NSC72B-S04G-S01 |
| BES02NJ | BES M18EI-PSC72B-S04G-S |
| BES02NK | BES M18EI-PSC72B-S04G-S01 |
| BES02NR | BES M18MF-USC70B-S04G |
| BES02NT | BES M18MG-GOC70B-BV02 |
| BES02NU | BES M18MG-UOC70B-BV02 |
| BES02P0 | BES 516-324-SA96-G-E5-C-S49 |
| BES02P1 | BES 516-343-SA96-G-E5-C-S49 |
| BES02P3 | BES 516-326-SA96-G-E5-Y-S4 |
| BES02P5 | BES 516-324-SA96-G-E4-C-S4-00.3 |
| BES02PN | BES M08MH1-NSC20B-S04G-101 |
| BES02PP | BES 516-324-EO-C-S49-01 |
| BES02PT | BES R01ZC-PSC70B-BP00.2-GS04-101 |
| BES02PU | BES M08MH1-PSC20B-S04G-101 |
| BES02PW | BES M08MH1-PSC30B-S04G-101 |
| BES02R7 | BES 516-324-EO-C-S4-PU-00.2 |
| BES02RA | BES 516-326-SA23-03 |
| BES02RC | BES 516-324-EO-L-PU-05 |
| BES02RJ | BES 516-300-S135-D-PU-10 |
| BES02RN | BES IKJ-S-050-P-2-S-S4-C |
| BES02RP | BES IKK-050.38-G-S4 |
| BES02RU | BES IKN-070T.38-G-S4 |
| BES02RW | BES IKN-K-070-P-1-S |
| BES02T0 | BES IKN-S5-070-W-4-S |
| BES02T2 | BES IKO-K-100-P-1-S |
| BES02T4 | BES IKO-S5-100-W-4-O |
| BES02T5 | BES IKO-S5-100-W-4-S |
| BES02T9 | BES IKU-010.23-G-S4 |
| BES02TA | BES IKU-010.23-G-S49-SA1 |
| BES02TC | BES IKU-011-P-1-S-S4-SA1 |
| BES02TE | BES IKU-011.23-G-S4-SA2 |
| BES02TF | BES IKU-011T.28-G-S4 |
| BES02TH | BES IKU-015-23-G-S4 |
| BES02TK | BES IKU-015.23-G-S4-SA1 |
| BES02TL | BES IKU-021.28-G-S4 |
| BES02TN | BES IKU-031.28-S4 |
| BES02TP | BES IKU-051.23-G-S4 |
| BES02TR | BES IKU-215.38-G-S4 |
| BES02TT | BES IKV-010.23-G-Z-S4 |
| BES02TW | BES IKV-025.23-G-Z-S4 |
| BES02TY | BES IKV-045.23-G-Z-S4 |
| BES02U5 | BES IKV-K-045-NS-1-Y |
| BES02U7 | BES IKV-K-045-PS-1-Y |
| BES02UA | BES IKV-S4-015-PS-1-Y |
| BES02UE | BES IKV-S4-025-NS-1-Y-TD |
| BES02UH | BES IKV-S4-045-PS-1-Y |
| BES02UN | BES IKZ-475.38-G-S4 |
| BES02W0 | BES M08MG1-NSC60F-S04G |
| BES02W5 | BES M08MH-PSC40B-BP00,2-GS04-507 |
| BES02W6 | BES M08MH-PSC40B-S49G-507 |
| BES02W7 | BES M08MH1-NSC30B-S04G |
| BES02W9 | BES M08MH1-PSC30B-S04G |
| BES02WC | BES M12EF1-NSC10F-S04G-S |
| BES02WE | BES M12EF1-PSC10F-S04G-S |
| BES02WF | BES M12EG1-NSC60Z-S04G-S11 |
| BES02WH | BES M12EG1-PSC60Z-S04G-S11 |
| BES02WJ | BES M12MC1-NSC10F-S04G |
| BES02WK | BES M12MC1-PSC10F-S04G |
| BES02WL | BES M12MD1-NSC60B-S04G |
| BES02WM | BES M12MD1-PSC60B-S04G |
| BES02WN | BES M12MF1-NSC10F-S04G |
| BES02WP | BES M12MF1-POC10F-S04G |
| BES02WR | BES M12MF1-PSC10F-S04G |
| BES02WU | BES M12MG1-NOC60B-S04G |
| BES02WW | BES M12MG1-NSC60B-S04G |
| BES02WY | BES M12MG1-POC60B-S04G |
| BES02WZ | BES M12MG1-PSC60B-S04G |
| BES02Y0 | BES M18EF1-NSC20F-S04G-S |
| BES02Y1 | BES M18EF1-PSC20F-S04G-S |
| BES02Y2 | BES M18EG1-NSC10Z-S04G-S11 |
| BES02Y3 | BES M18EG1-PSC10Z-S04G-S11 |
| BES02Y7 | BES M18ME1-PSC20F-S04G |
| BES02Y9 | BES M18MG1-PSC12B-S04G |
| BES02YC | BES M30EE1-PSC40F-S04G-S |
| BES02YF | BES M30EG1-PSC20Z-S04G-S11 |
| BES02YH | BES M30MG1-NSC40F-S04G |
| BES02YJ | BES M30MG1-PSC40F-S04G |
| BES02YL | BES M30MI1-POC22B-S04G |
| BES02YM | BES M30MI1-PSC22B-S04G |
| BES02YR | BES M08EG-PSC15A-S49G-W |
| BES02YT | BES M08EG1-PSC15A-S04G-W |
| BES02YU | BES M12MD1-NSC80E-S04G |
| BES02YY | BES M08EG1-NSC15S-S04G-S |
| BES02YZ | BES M08EG1-PSC15S-S04G-S |
| BES02Z0 | BES M12EG1-NSC20S-S04G-S |
| BES02Z1 | BES M12EG1-POC20S-S04G-S |
| BES02Z2 | BES M12EG1-PSC20N-S04G-S |
| BES02Z3 | BES M12EG1-PSC20S-S04G-S |
| BES02Z5 | BES M12EN1-USU20S-S21G-S |
| BES02Z6 | BES M18EG1-NSC50S-S04G-S |
| BES02Z7 | BES M18EG1-POC50S-S04G-S |
| BES02Z8 | BES M18EG1-PSC50N-S04G-S |
| BES02Z9 | BES M18EG1-PSC50S-S04G-S |
| BES02ZC | BES M18EP1-USU50S-S21G-S |
| BES02ZE | BES M18MN-USU80B-S21G |
| BES02ZH | BES M30EG1-PSC80N-S04G-S |
| BES02ZJ | BES M30EG1-PSC80S-S04G-S |
| BES02ZR | BES G06MD-GNX10B-EV02-EEX |
| BES02ZT | BES M08MD-GNX10B-EV02-EEX |
| BES02ZU | BES M12ME-GNX40B-S04G-EEX |
| BES02ZW | BES M18ME1-GNX80B-S04G-EEX |
| BES02ZY | BES M30ME1-GNX15B-S04G-EEX |
| BES02ZZ | BES Q40KFU-GNX20B-S92G-EEX |
| BES0300 | BES Q40KFU-GNX35F-S92G-EEX |
| BES0304 | BES Q40KFU-PAC40E-S04G-012 |
| BES0305 | BES Q40KFU-PSC20A-S04G-012 |
| BES0306 | BES Q40KFU-PSC20B-S04G-012 |
| BES0307 | BES Q40KFU-PSC35E-S04G-012 |
| BES0308 | BES Q40KFU-PSC40F-S04G-012 |
| BES030A | BES Q80KA-GSH50B-S04Q |
| BES030C | BES Q80KA-PAC50B-S04Q-U |
| BES030E | BES Z03K-GSS10B-EP00,15-GS04-006 |
| BES030F | BES Z03K-GSS10B-EP00,8-GS04-006 |
| BES030K | BES 516-325-E5-Y-S4 |
| BES030L | BES 516-326-G-E5-Y-S4 |
| BES030P | BES 516-326-G-E4-Y-03 |
| BES030R | BES 516-326-G-E5-Y-S49 |
| BES030T | BES 516-326-G-E4-Y-PU-05 |
| BES030U | BES 516-326-G-E4-Y-05 |
| BES030W | BES 516-325-E5-Y-S49 |
| BES030Y | BES 516-357-E4-Y-03 |
| BES0314 | BES R01ZC-PAC70B-BP00.2-GS04-107 |
| BES0315 | BES M05EG-NSC08B-BP00,2-GS49 |
| BES0316 | BES 516-418-E5-L-S27 |
| BES0317 | BES 516-420-E5-L-S27 |
| BES0318 | BES 516-449-S27-L |
| BES031C | BDS 21MR03-NT-PU-03-SA2 |
| BES031E | BDS 21MR03-NT-PU-05-SA5 |
| BES031F | BDS 21MR05-NT-PU-03-SA2 |
| BES031H | BDS 21MR05-NT-PU-03-SA4 |
| BES031J | BDS 21MR05-NT-PU-05-SA2 |
| BES031L | BDS 21MR08-NT-PU-03-SA2 |
| BES031N | BES 516-527-S4-H |
| BES0324 | BES M08MG-GSC20B-BP00,3-GS04-101 |
| BES0325 | BES M08MG-USC20B-BV00.32.-512 |
| BES0326 | BES M12MG-GSC30B-BP00,3-GS04-101 |
| BES0328 | BES M18MF-GSC70B-S04G |
| BES032C | BES R01ZC-USC50B-BP00.2-GS04 |
| BES032H | BES 516-100-S32 |
| BES032J | BES 516-100-S33 |
| BES032M | BES 516-113-SA3-S4-C |
| BES032N | BES 516-114-SA6-05 |
| BES032P | BES 516-133-SA2-02 |
| BES032R | BES 516-133-SA3-C-PU-04 |
| BES032T | BES 516-133-SA3-C-S4-02 |
| BES032U | BES 516-146-EO-X-PU-F017 |
| BES0330 | BES 516-209-SA1-S21-E |
| BES0331 | BES 516-209-SA2-S21-E |
| BES0333 | BES 516-213-E5-E-S21-C037 |
| BES0338 | BES 516-300-S173-02,5 |
| BES0339 | BES 516-300-S176-03,5 |
| BES033E | BES 516-300-S223 |
| BES033H | BES 516-300-S255 |
| BES033J | BES 516-300-S279 |
| BES033U | BES 516-3006-SA-VDM-2 |
| BES033Y | BES 516-3007-SA4-00,4 |
| BES0341 | BES 516-3009-SA2-MO-C-05 |
| BES0343 | BES 516-3009-SA3-MO-C-S49 |
| BES0345 | BES 516-3013-G-SA2-PU-06 |
| BES0346 | BES 516-3013-G-SA2-S49-00,05 |
| BES0347 | BES 516-3013-G-SA2-S49-00,32 |
| BES0348 | BES 516-3013-G-SA2-S49-00,5 |
| BES0349 | BES 516-3013-G-SA2-S49-C |
| BES034C | BES 516-3024-SA2-03 |
| BES034J | BES 516-324-G-SA58-S49-C |
| BES034K | BES 516-324-SA17-05 |
| BES034L | BES 516-324-SA33 |
| BES034P | BES 516-324-SA44-C-02 |
