Baumer IFRM 12P1701/S14L

Inductive proximity switch Baumer IFRM 12P1701/S14L

Inductive proximity switch - standard

Article number: 10214930

Overview:

■ 4 mm

■ PNP make function (NO)

■ connector M12

■ -25 … 75 °C

■ IP 67

Thông số kỹ thuật:

Technical data

General data

Mounting type Flush

Nominal sensing distanceSn : 4mm

Hysteresis 3 … 20 % of Sr

Output indicator 3 port LED red

Electrical data

Switching frequency 2 kHz

Voltage supply range +Vs 6 … 36 VDC

Current consumption max.

(no load)

10 mA

Output circuit PNP make function (NO)

Voltage drop Vd < 2 VDC

Output current < 200 mA

Electrical data

Short circuit protection Yes

Reverse polarity protection Yes

Mechanical data

Type Cylindrical threaded

Material (sensing face) PBT

Housing material Brass nickel plated

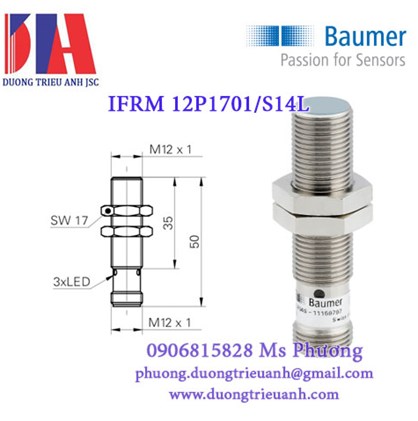

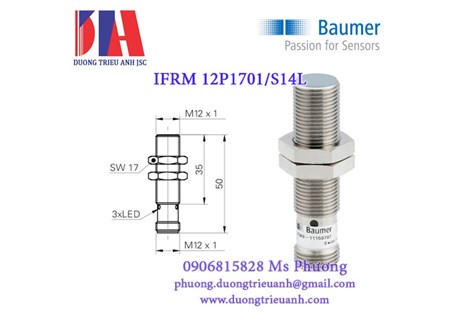

Dimension 12 mm

Housing length 50 mm

Connection types Connector M12

Tightening torque max. 15 Nm (Front: 10 Nm)

Ambient conditions

Operating temperature -25 … +75 °C

Protection class IP 67
