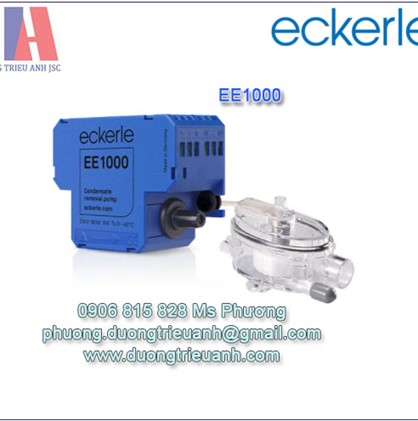

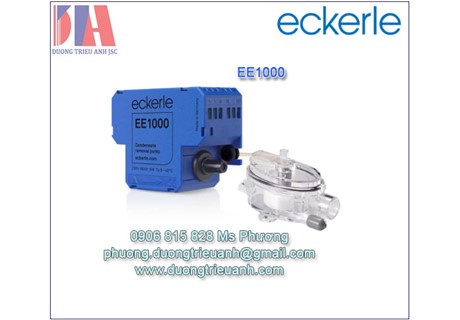

Bơm Eckerle EE1000 | Eckerle Mini-condensate pump

Drive:    Swiss drive inside
For air conditioning units up to (kW):    10
Pump module (L x W x H in mm):    77 × 37,5 × 62
Electrical data:    230 V, 50/60 Hz, 8 W
Power consumption in Standby mode (W):    Operation 8, Standby 1
Float module (L x W x H in mm):    82 × 39 × 39
Max. delivery volume (l/h):    10
Max. delivery height (m):    10
Max. suction height (m):    1,5
Alarm circuit:    max. 230 V, 8 A (ohmic load) NO/NC normally open/normally closed
Special feature    Impervious to blockage or contamination due to unique valve design and large piston bore
Switching points (mm):    Alarm: max. 23 Start: 20 ±1 Stop: 15 ±1
