Cảm biến Dynisco PT4626 15M-3/30 | Cam bien Dynisco Viet Nam

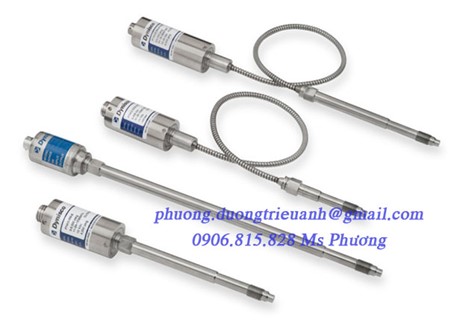

Dynisco sensor the PT46X6 Series transmitter is a ±0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X6 transmitters provide the industry standard 0 - 10 Vdc amplified signal designed to work with DCS and PLCs, 1 - 11 Vdc outputs are also available. The
PT46X6 comes equipped with zero and span pots to adapt the transmitter to process conditions. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT46X6 features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of electrical connections.
Features:
■ Adjustable zero and span
■ Accuracy better than ±0.5%
■ DyMax® coated stainless steel wetted parts
■ 0 - 10 Vdc and 1 - 11 Vdc outputs
■ 0 - 500 to 0 - 30,000 psi
■ Internal 80% shunt calibrations
