Cảm biến Pulsotronic 08310000772 type KJ5-Q25KB-DPS cáp dài 2m

Cảm biến Pulsotronic part number 08310000772 type KJ5-Q25KB-DPS có cáp dài 2m

Name:  KJ5-Q25KB-DPS

Order number  08310000772

Switching distance      5mm

Mounting        shielded

Switch type     N.O.

Signal Type     DC PNP

Connection      Cable

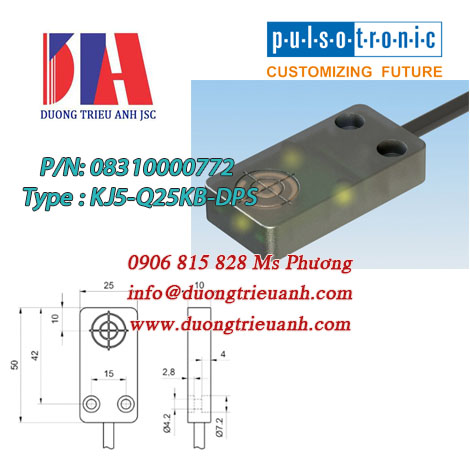

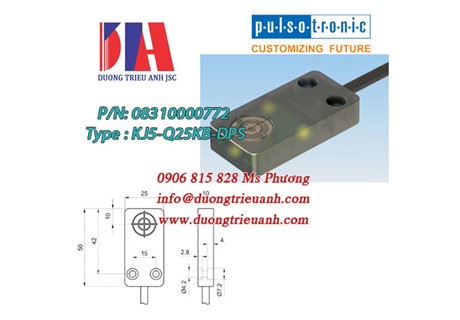

Dimension (in mm)     Q 25 x 10 x 50

Technical Specification

Operating voltage       10 - 30  VDC

Max. ripple      ≤ 10  %

Voltage drop   2,4  V

Max. load current        200  mA

No load current           ≤ 13  mA

Leakage current          ≤ 10  µA

Switching frequency   1000

Switching hysterese    ≤ 15  %

Operating temperature            -25 ° C to 70 ° C

Temperature drift        ≤ 10  %

Repeat accuracy          ≤  5 %

Swiching state LED

Cable length    2 m

Utilisation category     DC 13

Cable material PVC LIYY grau

Cable cross      3x0.34 mm²
