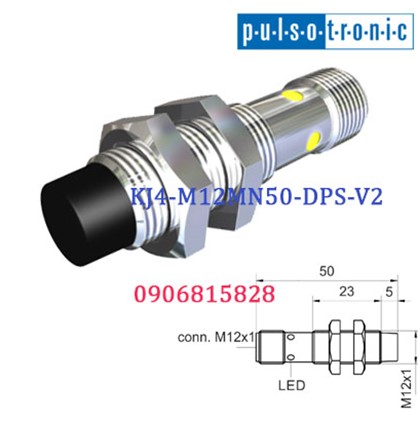

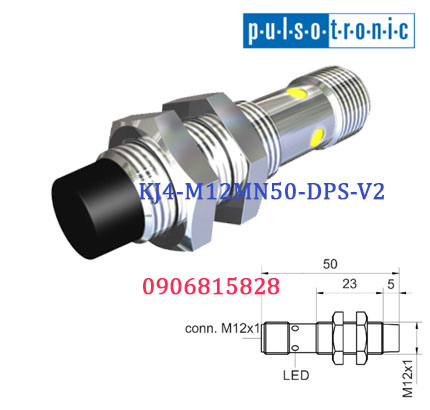

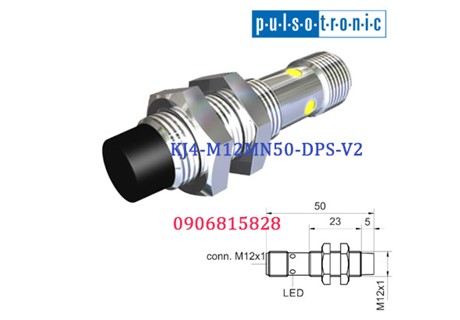

Cảm biến Pulsotronic KJ4-M12MN50-DPS-V2

Name: KJ4-M12MN50-DPS-V2
Order number: 08317822265
Matchcode: 9982-2265
Switching distance: 4mm
Operating voltage 10 - 30 VDC
Max. ripple ≤ 10 %
Voltage drop 2,4 V
Max. load current 200 mA
No load current ≤ 13 mA
Leakage current ≤ 10 µA
Switching frequency 1000
Switching hysterese ≤ 15 %
Operating temperature -25 ° C to 70 ° C
Temperature drift ≤ 10 %
Repeat accuracy ≤ 5 %
Swiching state LED
Short-circuit proof yes
Overload protection yes
Reverse voltage protection yes
Protection category IP67
EMC-level DIN EN 60947-5-2: 2008
Housing material Brass, nickel plated
Material active face PBT
Utilisation category DC 13
Termination Connector M12 4pin
