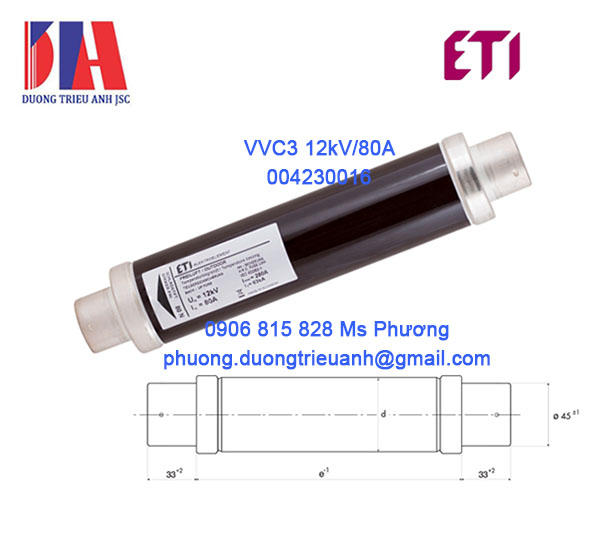

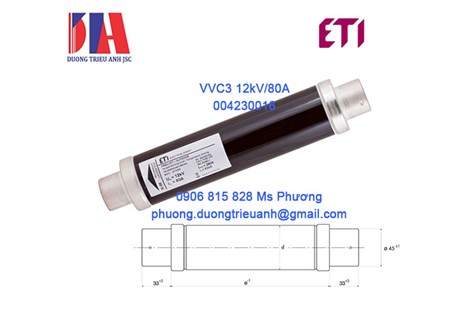

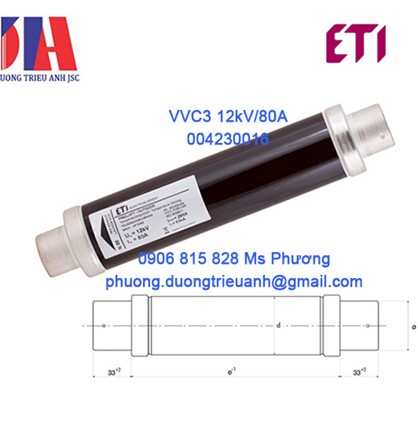

Cầu chì ETI 80A 12kV 004230016

Eti Fuse 80A là loại cầu chì bảo vệ máy biến áp, bảo vệ động cơ, bảo vệ tụ điện, lắp đặt trong bộ phận chính vòng.

ETI Code: 004230016
Description VVC3 12kV/80A
Class name Fuse link
Rated current (A) 80
Type NEW VVC 50N striker
Size: 292
Characteristics Other
Rated AC voltage (V) 12000
Indicator 50N striker force
Breaking capacity AC (kA) 63
Power dissipation (W) 75
Application transformer protection, motor protection,
capacitor bank protection, installation in ring
main unit
Rated minimum breaking current (A) 280
Cold resistance (m?) 9

ETIM international clasification: ( Theo tiêu chuẩn quốc tế):
Classification EC003507
Class name Medium-/high voltage fuse
Application Other
Breaking capacity 63kA
Diameter 68mm
Installation technique Air
Length 292mm
Nominal rated current 80A
Nominal rated frequency 45…60Hz
Nominal rated voltage 12kV
Performance category according to IEC 60282-1 Back-up
Standard IEC
Utilization category Other
Voltage type AC
