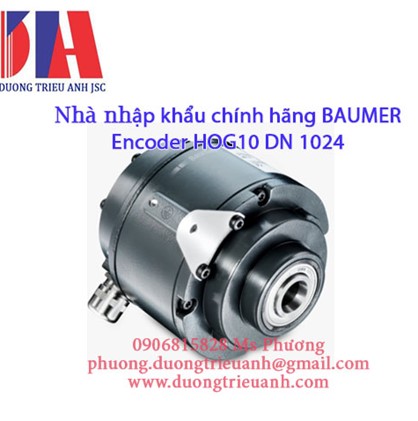

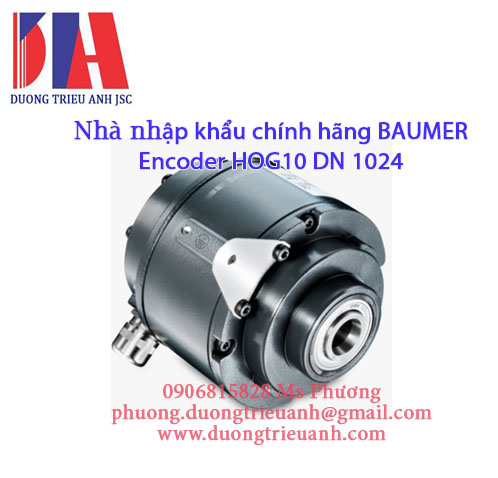

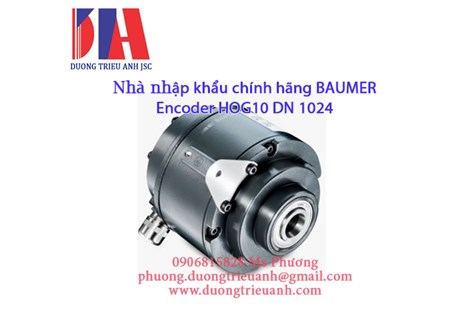

Encoder Baumer HOG10 DN 1024 I LR 16H7 KLK-AX
Encoders Baumer HOG10 DN 1024 I LR 16H7 KLK-AX
Article no.: 11070362
Trục rỗng mù, 1024 xung trên mỗi vòng quay
Trình điều khiển đầu ra HTL cho chiều dài cáp lên tới 350 m
Khả năng chống sốc và rung rất cao
Vòng bi hai bên với vòng bi lai giúp kéo dài tuổi thọ sử dụng
Hệ thống bịt kín cho môi trường bụi bặm
Vỏ thiết bị đầu cuối trục.
Thông số kỹ thuật Baumer HOG10 DN:
Voltage supply: 9...30 VDC
Consumption w/o load: ≤100 mA
Pulses per revolution: 1024
Phase shift: 90 ° ±20°
Duty cycle: 40…60 %
Reference signal: Zero pulse, width 90°
Sensing method: Optical
Output frequency: ≤120 kHz
Output signals: K1, K2, K0 + inverted
Output stages: HTL-P (power linedriver)
Shaft insulation: Suitable up to 2.8 kV
Transmission length: ≤350 m at 100 kHz (HTL-P)
Interference immunity: EN 61000-6-2
Emitted interference: EN 61000-6-3
Approval: CE UL approval / E217823
Technical data - mechanical design:
Size (flange): ø105mm
Shaft type: ø16mm (blind hollow shaft)
Admitted shaft load:
≤450 N axial
≤600 N radial
Protection EN 60529: IP 66
Operating speed: ≤6000 rpm (mechanical)
Operating torque typ.: 6 Ncm
Rotor moment of inertia: 340 gcm²
Material:
Housing: aluminium die-cast
Shaft: stainless steel
Operating temperature: -40...+100 °C
Resistance: IEC 60068-2-6 ; Vibration 20 g, 10-2000 Hz; IEC 60068-2-27 , Shock 300 g, 6 ms
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions CX (C5-M) according to ISO 12944-2
Connection: Terminal cover
Weight approx.: 1.6 kg
