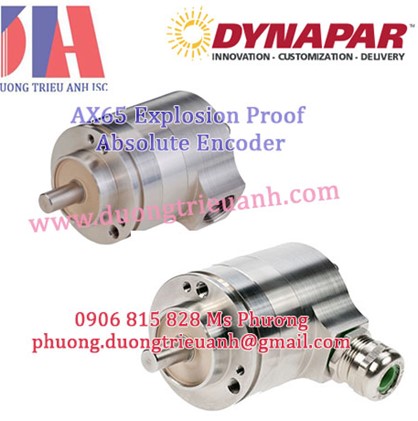

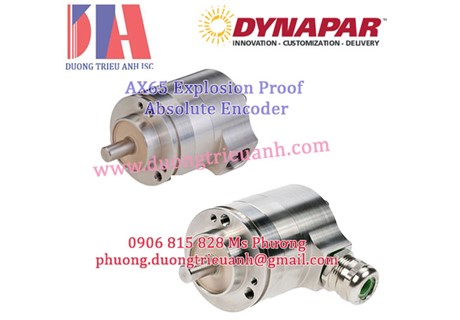

Encoder DYNAPAR AX65 (AX65-1212 và AX65-1612)

Encoder DYNAPAR AX65
Chống cháy nổ tuyệt đối
• 12 Bit của Singleturn, 12 hoặc 16 Bit của True
Định vị tuyệt đối nhiều lượt
• Chứng nhận ATEX và IECEX cho Khai khoáng,, Khí và Bụi
• Khả năng chống ăn mòn cực cao: Cao cấp, Vỏ thép không gỉ
• Cấp bảo vệ IP66/ IP67
• Truyền thông CANopen hoặc SSI
STANDARD OPERATING CHARACTERISTICS:
Code: Absolute, Magnetic
Resolution Single-turn: 12 Bit
Resolution Multi-Turn (CANOpen Only): 12 Bit, 16 Bit
Absolute Accuracy: ±1 °
Repeatability: ±0.2 °
ELECTRICAL:
Interface: CANopen, SSI
Input Power: DC 10 -30V
Current w/o Load:
(CANOpen) 100mA typ. (SSI) 200mA typ.
Recommended External Fuse: T 0.2 A
Power Consumption: Max. 2 W
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Tested to EN61326-1
Termination (without cable gland):
Terminal box with 1 x M20X1.5 screw thread, axial or radial
Terminal box with 2 x M20X1.5 screw thread, radial
Mating Connector: Cable Exit
MECHANICAL
Shaft Diameter: 10 mm (Solid shaft)
Shaft Material: Stainless Steel
Maximum Shaft Load Axial: 300 N axial
Maximum Shaft Load Radial: 300 N radial
Starting Torque: ≤4.5 Ncm typ.
Nominal Speed: 1500 rpm
Moment of inertia: approx. 25 gcm2
Housing Material: Stainless Steel
Weight: 2.86 lbs. (1300g) approx. without cable
Ordering: AX65-1212
                AX65-1612
