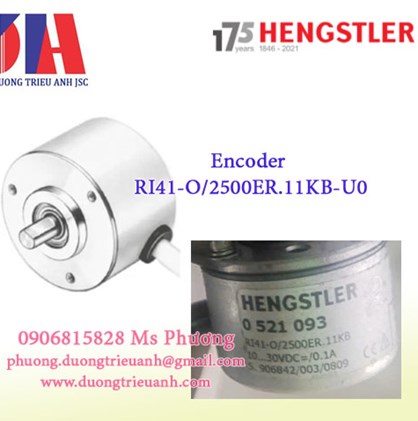

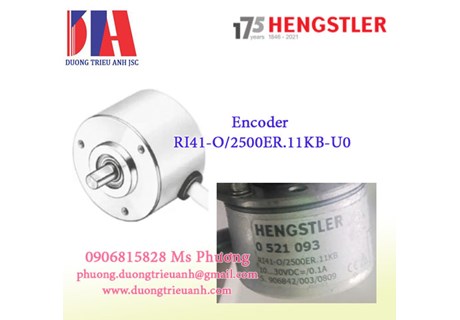

Encoder Hengstler RI41-O/2500ER.11KB
Incremental Encoder RI 41
Data sheet created
2008-04-24 22:32:09
Page
n Replacement for type RIM
n Economical miniature encoder
n Up to 14,400 steps with 3,600 pulses
n High mechanical efficiency
n Applications: wood working machines, FHP motors, graphic machines, table robots.
5 / 10 / 20 / 25 / 28 / 32 / 50 / 60 / 72 / 100 / 128 / 144 / 200 / 250 / 256 / 288 / 300 / 360 / 400 / 500
/ 512 / 600 / 720 / 900 / 1000 / 1024 / 1250 / 1500 / 2000 / 2048 / 2500 / 3000 / 3600
Other number of pulses on request
Serie : RI41
Type: Incremental
Technology: optical, mechanical
Construction: solid-shaft
Output signal: RS-422
Material: aluminum, plastic
Protection level: UL, IP50
Other characteristics:miniature
Housing diameter: 40 mm (1.57 in)
Rotational speed: 10,000 rpm (62,832 rad.min-1)
Housing diameter 40mm
Shaft diameter 6mm (Solid shaft)
Flange(Mounting of housing): Pilot flange
Protection class shaft input (EN 60529): IP40
Protection class housing(EN 60529): IP50
Shaft load axial/radial 5N/10N
Max. speed max. 10 000 rpm
Torque £ 0.2 Ncm
Vibration resistance(DIN EN 60068-2-6) 100m/s² (10 ... 2000 Hz)
Shock resistance (DIN EN 60068-2-27): 1000m/s² (6 ms)
Operating temperature -10 °C ... +70 °C
Storage temperature -25 °C ... +85 °C
Material housing Aluminum
Weight approx. 60g
Connection Cable, radial
General design as per DIN VDE 0160, protection class III, contamination
level 2, overvoltage class II
Supply voltage 1 Push-pull (D): DC 5 V ±10 %
Push-pull (K): ± 10% DC 5 V or DC 10 - 30 V
Max. current w/o load 40 mA (DC 5 V), 60 mA (DC 10 V), 30 mA (DC 24 V)
Max. pulse frequency DC 5 V: 300 kHz
DC 10 - 30 V: 200 kHz
Standard output versions: Push-pull (K): A, B, N, Alarm
Push-pull 5V, ± 30 mA (D): A, B, N, Alarm
Pulse width error ± max. 25° electrical
Number of pulses 5 ... 3600
Alarm output NPN-O.C., max. 5 mA
Pulse shape Square wave
Pulse duty factor 1:1
