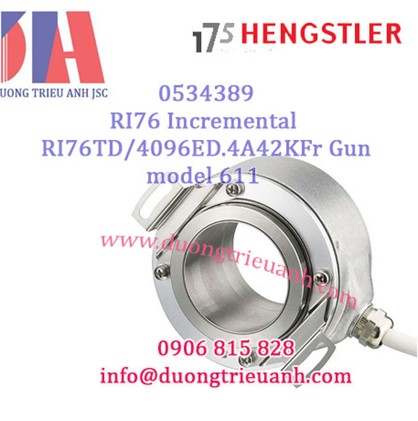

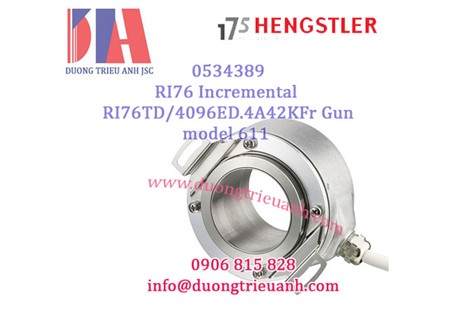

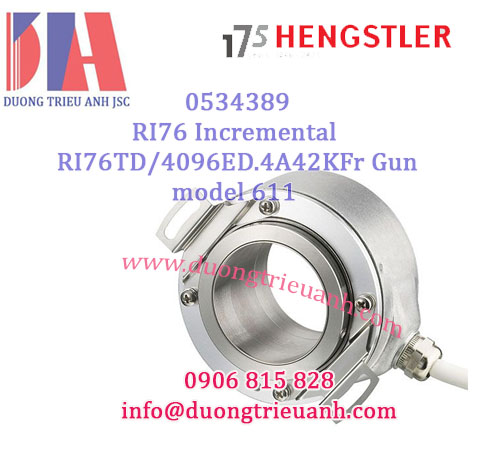

Encoder Hengstler RI76TD/4096ED.4A42KF code 0534389

Incremental Encoder RI 76TD ) 0534389 RI76TD/4096ED.4A42KF 10..30VDC=/100mA

Qua trục rỗng Ø 15 bis 42 mm
- Đường kính ngoài chỉ 76 mm
- Dễ dàng lắp đặt bằng vòng kẹp phía trước hoặc phía sau
- Nhiệt độ hoạt động lên đến 100 °C
- Ứng dụng: động cơ, máy in, thang máy..
NUMBER OF PULSES: 50 / 100 / 128 / 250 / 256 / 300 / 314 / 360 / 500 / 600 / 720 / 900 / 1000 / 1024 / 1250 / 1500 / 2048
/ 2500 / 3072 / 4096 / 5000 / 9000 / 10000  Other number of pulses on request
Housing diameter: 76 mm
Shaft diameter:  15 mm / 16 mm / 18 mm / 20 mm / 24 mm / 25 mm / 27 mm /28 mm / 30 mm / 32 mm / 38 mm / 40 mm (Hub shaft)
Flange (Mounting of housing):  Tether
Mounting of shaft: Front clamping ring, Rear clamping ring
Protection class shaft input(EN 60529):IP40 or IP64
Protection class housing: (EN 60529) IP50 (IP65 optional)
Minimum length of mountig shaft clamping ring front: 32mm with Ø 15 ... 30, 35 mm with Ø >30 ... 42
Mimimum length of mounting shaft clamping ring rear: corresponding to total length of encoder
Max. speed: for Ø 15 ... 25 mm at 70 °C and IP64: max. 3600 rpm
for Ø >25 ... 42 mm bei 70 °C and IP64: max. 1800 rpm
for Ø 15 ... 42 mm at 70 °C and IP40: max. 6000 rpm
for Ø 15 ... 42 mm at 100 °C always: max. 1800 rpm
Torque 3 ... 10 Ncm (depending on version)
Moment of inertia approx. 140 ... 420 gcm² (depending on version)
Vibration resistance
(DIN EN 60068-2-6)
10 g = 100 m/s² (10 ... 2000 Hz)
Shock resistance
(DIN EN 60068-2-27)
100 g = 1000 m/s² (6 ms)
Operating temperature -25 °C ... +100 °C
Storage temperature -25 °C ... +100 °C
Material housing Aluminum
Weight approx. 320 ... 580 g (depending on version)
Connection Cable, radial
