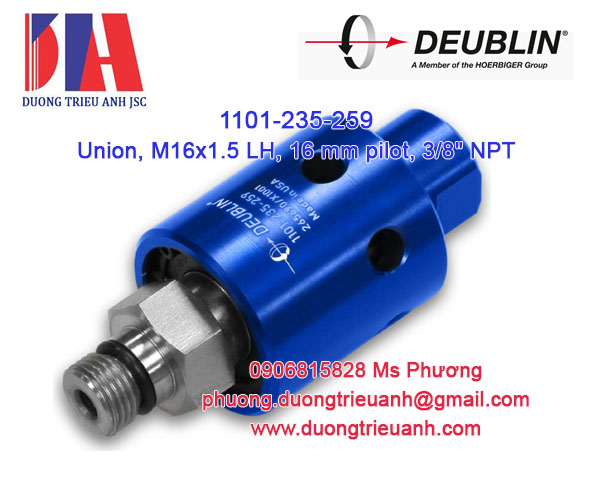

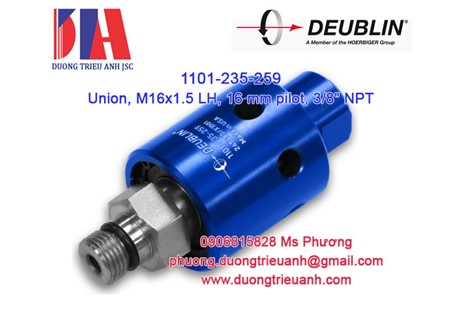

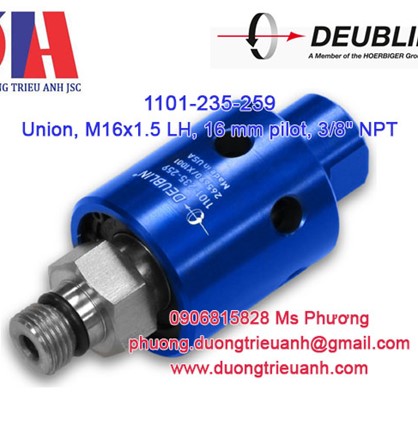

Khớp nối Deublin 1101-235-259 Union, M16x1.5 LH, 16 mm pilot, 3/8" NPT

Khớp nối chính hãng Deublin model 1101-235-259
Single passage for coolant or MQL
Closed seals for transfer line and similar applications
Full-flow design has no obstructions to trap swarf or debris
Bearing-supported with threaded rotor for easy installation
Deep groove radial ball bearings for smooth operation
Labyrinth system and large vents to protect ball bearings

Thông số kỹ thuật:

Media: Coolant
Rotor Connection: M16x1.5 LH, 16.025 mm pilot
Housing Connection: 3/8"-18 NPT
Coolant Max. Flow: 20.1 l/min
Coolant Max. Pressure: 103.4 bar
Coolant Max. Temperature: 71 °C
