khop noi Deublin 357-000-235 chinh hang - Deublin Viet Nam

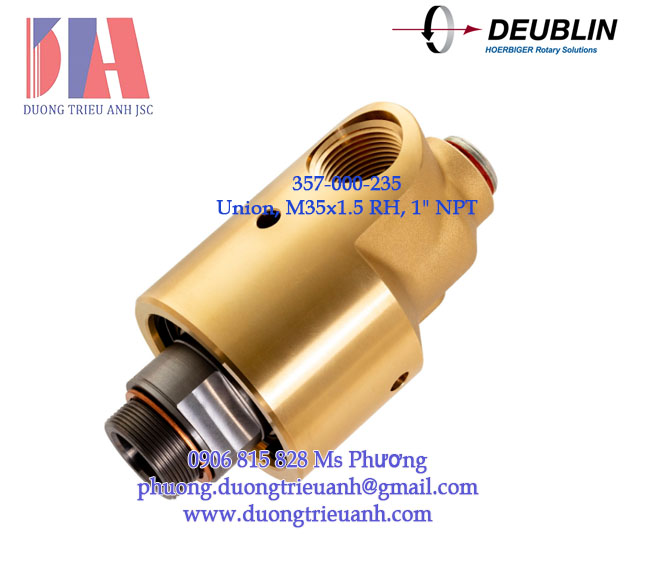

Khơp noi Deublin model 357-000-235:
Monoflow and duoflow design
Self-supported rotating union
Radial housing connection
Balanced mechanical seals
Keyed rotor seal
Easy and quick replacement of sealing components
Ball bearings lubricated for life
E.L.S. (Extended Life Service) seal combination for poor water quality
3 vent holes
Forged brass housing and stainless steel rotor
Special options include threaded vent holes

Operating Specifications:

• Media:  Water, Steam, Hot Oil
• Rotor Connection: M35x1.5 RH
• Housing Connection: 1"-11.5 NPT
• Hot Oil Max. Flow: 107.7 l/min
• Hot Oil Max. Pressure 6.9 bar
• Hot Oil Max. Temperature 121°C
• Steam Max. Flow 448.9 l/min
• Steam Max. Pressure 1 bar
• Steam Max. Temperature 121°C
• Water Max. Flow 107.7 l/min
• Water Max. Pressure 51.7 bar
• Water Max. Temperature 121°C
