Bơm bánh răng Voith IPS 3 – 10 | Voith IPS 6 – 64 | Voith pumps IPS 7 – 250 | Bơm voith chính hãng tại Việt Nam

Bơm bánh răng Voith IPS 3 – 10 | Voith IPS 6 – 64 | Voith pumps IPS 7 – 250 | Bơm voith chính hãng tại Việt Nam

Giá : Liên hệ

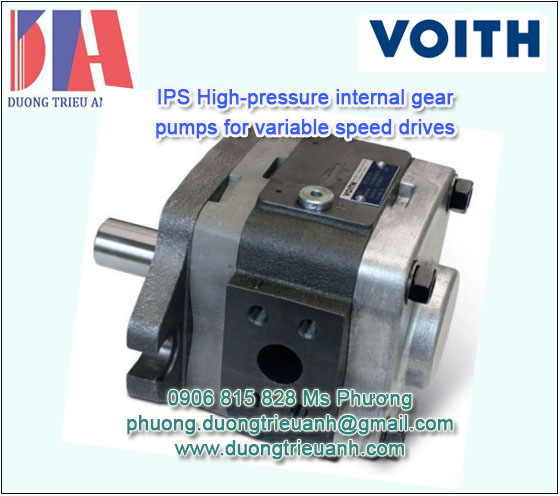

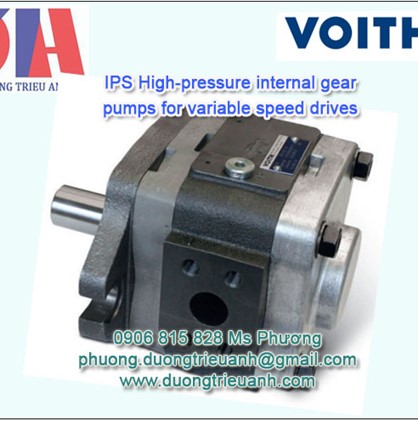

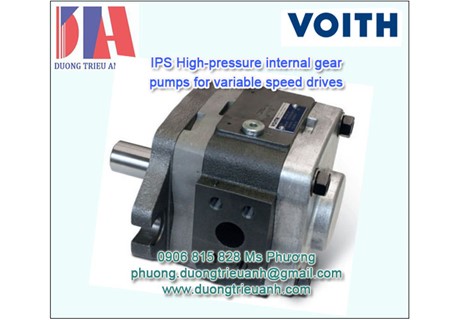

IPS High-pressure internal gear pumps for variable speed drives

Bơm bánh răng Voith IPS được phát triển cho các ứng dụng truyền động tốc độ thay đổi. Phạm vi hiệu suất lên đến áp suất đỉnh 345 bar và thể tích dịch chuyển tối đa là 252 cm³ mỗi vòng quay.
Advantages
+ Very good controllability and
pressure hold function
+ Very good pulsation behavior
+ Industry 4.0 compatible
+ Multiple flow capable

Design Internal gear pump with radial and axial sealing gap compensation
Type IPS
Mounting types SAE hole flange; ISO 3019/1
Line mounting SAE suction and pressure flange J 518 C Code 61 / 62
Sense of rotation left or right hand rotation
Mounting position any
Shaft load for details please contact J.M. Voith SE & Co. KG
Input pressure 0.8…3 bar absolute pressure (at start up for short time 0.6 bar)
Preload pressure. pressure port (in reversing mode) for details please contact J.M. Voith SE & Co. KG
Pressure fluid HLP mineral oils DIN 51524. part 2 or 3
Viscosity range of the pressure fluid 10…300 mm2s-1 (cSt). up to n = 1 800 min-1
10…100 mm2s-1 (cSt). up to nmax
Permissible start viscosity max. 2 000 mm2s-1 (cSt)
Permissible temperature of the pressure fluid -20 ... + 80°C

• Bơm dầu khoáng có độ nhớt 20… 40 mm2s-1
• Áp suất đầu vào tuyệt đối 0,8… 3,0 bar

Bom Voith IPS 3 – 3,5
Voith Viet Nam IPS 3 – 5
Bom Voith chinh hang IPS 3 – 6,3
Voith pumps IPS 3 – 8
Bơm bánh răng Voith IPS 3 – 10
Bom Voith IPS 4 – 13
Bom Voith IPS 4 – 16
Voith Viet Nam IPS 4 – 20
Bom Voith chinh hang IPS 4 – 25'
Voith pumps IPS 5 – 32
Bơm bánh răng Voith IPS 5 – 40
Bom Voith IPS 5 – 50
Bom Voith IPS 5 – 64
Voith Viet Nam IPS 6 – 64
Bom Voith chinh hang IPS 6 – 100
Voith pumps IPS 6 – 80
Bơm bánh răng Voith IPS 7 – 125
Bom Voith IPS 7 – 160
Bom Voith IPS 7 – 200
Voith Viet Nam IPS 7 – 250
