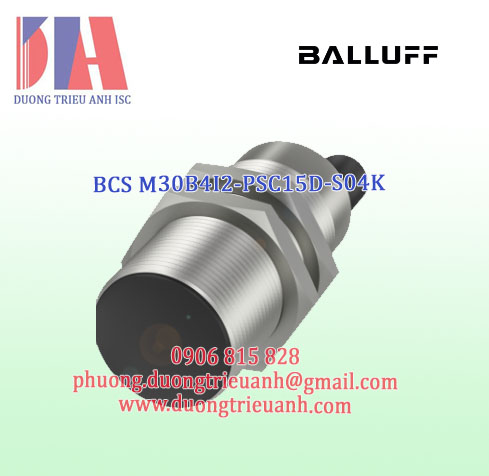

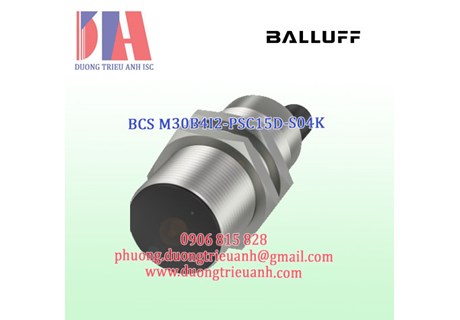

Cảm biến Balluff BCS00MR BCS M30B4I2-PSC15D-S04K

BCS00MR BCS M30B4I2-PSC15D-S04K
Capacitive sensors for object detection

Additional features: weld-immune (magnetic field 100kA/m)
Approval/Conformity: CE, UKCA, cULus, WEEE
Basic standard: IEC 60947-5-2
Scope of delivery: Nut (2x)
Sensitivity Switching distance adjustable
Series: M30
Trademark: Global

Electrical data:
No-load current Io max. at Ue 20 mA
Operating voltage Ub 10...30 VDC
Rated insulation voltage Ui 75 V DC
Rated operating current Ie 100 mA
Rated operating voltage Ue DC 24 V
Ready delay tv max. 300 ms
Ripple max. (% of Ue) 10 %
Switching frequency 100 Hz
Utilization category DC -13
Voltage drop static max. 1.5 V
Ambient temperature -25...85 °C
Contamination scale 1
Electrical connection
Connection M12x1-Male, 3-pin, A-coded
Polarity reversal protected yes
Protection against device mix-ups no
Short-circuit protection yes
Range/Distance:
Hysteresis H max. (% of Sr) 15.0 %
Measuring range 2...15 mm
Rated operating distance Sn 15 mm
Repeat accuracy max. (% of Sr) 2.0 %
Temperature drift max. (% of Sr) 20 % [-5…55 °C]
Mechanical data:
Dimension Ø 30 x 79 mm
Installation for flush mounting
Size M30x1.5
Thread (A) M30x1.5
Tightening torque 90Nm
