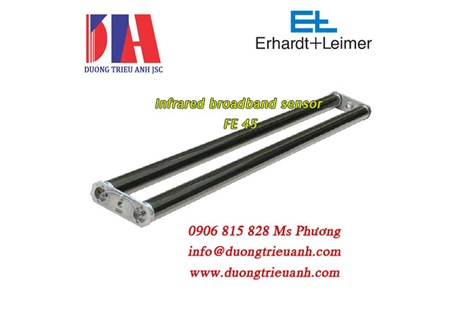

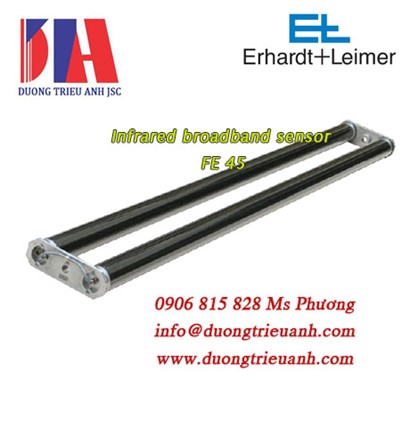

Cảm biến hồng ngoại Erhardt+Leimer FE 45 (Erhardt+Leimer Infrared broadband sensor FE 45)

Để sử dụng làm cảm biến băng thông rộng kỹ thuật số để phát hiện trung tâm web/cạnh web và đo chiều rộng lên đến chiều rộng hoạt động tối đa là 3800 mm trong ngành dệt may, các tông sóng và lốp xe
Quét các cạnh web thông qua ánh sáng hồng ngoại
Khả năng miễn dịch cao đối với dao động trong suốt và ánh sáng bên ngoài
Ống bảo vệ làm bằng Plexiglas cho hoạt động khô và ẩm và làm bằng thủy tinh cho khu vực ẩm ướt

Thông số kỹ thuật Erhardt+Leimer FE 45:
Operating voltage, nominal value: 24VDC
Operating voltage, nominal range (ripple included):    20-30VDC
Current consumption    max. 0,2 A
Ambient temperature    +0 °C to +60 °C
Storage temperature    +0 °C to +85 °C
Working width (AB)    Up to 3800 mm
Measuring range    Depends on version
Accuracy of web edge and web center detection "standard"    ±5 mm (depends on the condition of the web edge)
Accuracy of web edge and web center detection "High"    ±3 mm (depends on the condition of the web edge)
Accuracy of web edge and web center detection "Premium"    ±1 mm (depends on the condition of the web edge)
Width measurement accuracy "Standard"    ±10 mm (depends on the condition of the web edge)
Width measurement accuracy "high"    ±6 mm (depends on the condition of the web edge)
Width measurement accuracy "Premium"    ±2 mm (depends on the condition of the web edge)
Web position    Centered between the transmitter and receiver
Max. height fluctuation:    ±10 mm
Scan rate:    200 Hz
Spacing between transmitter−receiver:    80mm
Max. sensor cable length:    25m
Protection class: Max. IP 54 with suitable connector inserted
Weight    Approx. 15 kg (AB 1600 mm)
Approx. 30 kg (AB 3200 mm)
DTA JSC chuyên nhập khẩu trực tiếp các loại cảm biến của hãng Erhardt+Leimer FE45 tại Việt Nam.
