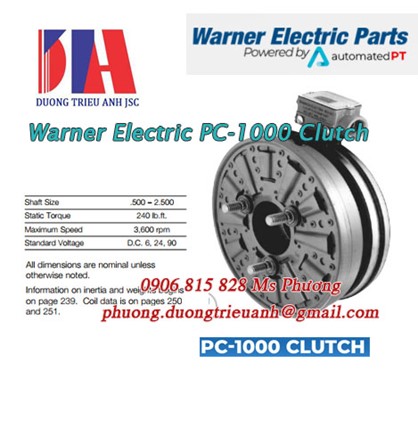

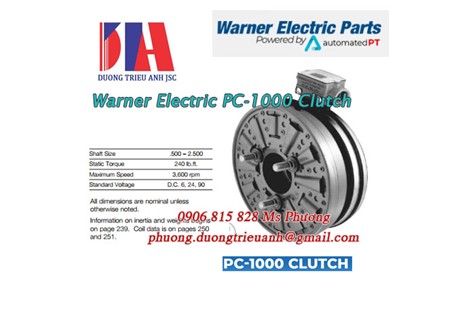

Phanh thắng PC-1000 Warner Electric | Bộ ly hợp Warner Electric PC-1000 | Warner Electric PC-1000 Clutch
Phanh thắng PC-1000 Warner Electric | Bộ ly hợp Warner Electric PC-1000 | Warner Electric PC-1000 Clutch
Giá :
Liên hệ
Phanh thắng Warner Pc-1000-clutch:
- PC Series
- Model Size: pc-1000
- Voltage: 6/24/90 VDC
- Static Torque: 240 lb.ft.
- Max RPM: 3,600 rpm
- Shaft Size: .500 2.500
Phụ kiện của phanh /bộ ly hợp Warner Electric PC-1000:
| PC-1000 Normal Duty: | |||
| Item | Description | Part Number | Qty. |
| 1 | Armature | 5302-111-013 | 1 |
| 2 | Autogap Accessory | 5201-101-008 | 3 |
| 3 | Mounting Accessory | 5321-101-001 | 1 |
| 4 | Magnet | 1 | |
| 6 Volt | 5302-631-003 | ||
| 24 Volt | 5302-631-014 | ||
| 90 Volt | 5302-631-005 | ||
| 90 Volt LK Facing | 5302-631-001 | ||
| 4-1 | Terminal Accessory | 5311-101-001 | 1 |
| 5 | Bushing* | 1 | |
| 1/2″ to 2-1/2″ Bore | 180-0185 to 180-0217 | ||
| 6 | Magnet Hub | 1 | |
| Left Hand (shown) | 5302-541-001 | ||
| Right Hand | 5302-541-002 | ||
| 6-1 | Collector Ring | 5301-749-001 | 1 |
| 6-2 | Collector Ring Accessory | 5302-101-002 | 1 |
| 7 | Brushholder | 5300-178-001 | 1 |
| 42186 | Brush | 176-0001 | 4 |
