Giá : Liên hệ

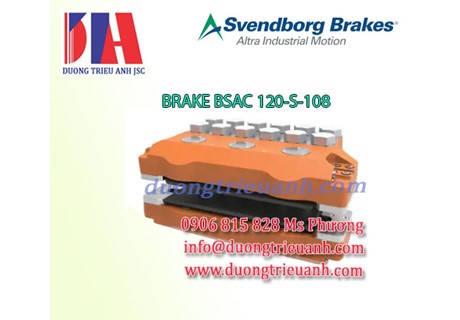

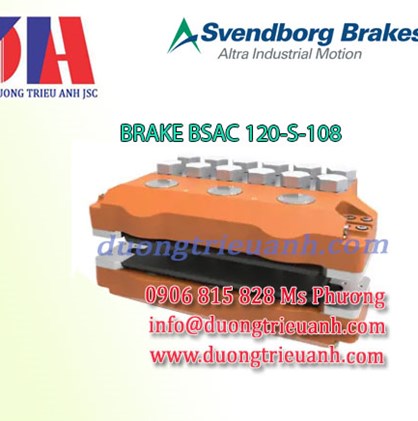

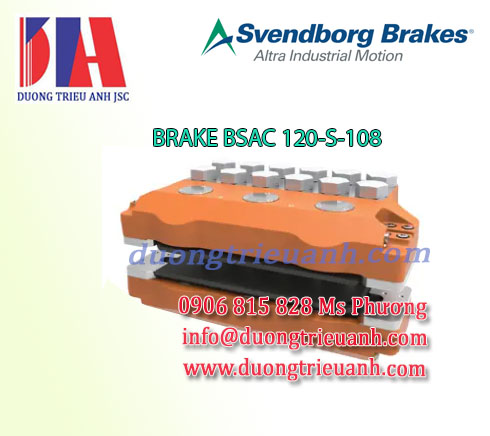

Má phanh thủy lực Svendborg Brakes BSAC 120-S-108
Phanh tác động kép nhiều pít-tông với giá đỡ đệm có thể tháo rời hoặc cố định. Các ứng dụng điển hình cho dải phanh BSAB; hệ thống đảo chiều (tua-bin gió), hệ thống xoay (cần trục), phanh trục (tàu) và phanh truyền động phía trên (giàn khoan).
Thông số kỹ thuật của phanh
CALCULATION FUNDAMENTALS BSAC 120-S-108:
Weight of calliper half (without brake pad): ................................Approx. 93 kg
Weight of calliper: .....................................................................Approx. 198 kg
Overall dimensions: ..........................................................572 x 318 x 287 mm
Pad width: ............................................................................................ 138 mm
Pad area:(organic).................................................................... 57,900 mm2
(*)
Max. wear of pad:(organic)................................................................. 3 mm (*)
Nominal coefficient of friction:................................................................  = 0.4
Total piston area - each calliper half:............................................A=339,3 cm2
Total piston area - each calliper: ..................................................A=678,6 cm2
Volume for each calliper at 6 mm stroke: ......................................... 407,2 cm3
Volume for each calliper at 10 mm stroke: ....................................... 678,6 cm3
Pressure connection/port:...................................................................1/4" BSP
Drain connection port:.........................................................................1/4" BSP
Max. operating pressure Pmax.............................................................20 MPa
Min. operating pressure Pmin.................................................................0 MPa
Recommended pipe size: ...................................................................... 10 mm
Operating temperature range
General usage: .........................................................................-20°C to +70°C
For brake applications in wind turbines: ...................................-30°C to +60°C
(For temperatures outside this range contact Svendborg Brakes)

Model tương đương khác:

BSAC 120
BSAH 500
BSAH 500
BSAH D500
BBAK 300
BSAK 3000
