Phanh thủy lực Svendborg BSFI 300-X-200 (”E”) lò xo kép

Phanh thủy lực Svendborg BSFI 300-X-200 (”E”) lò xo kép

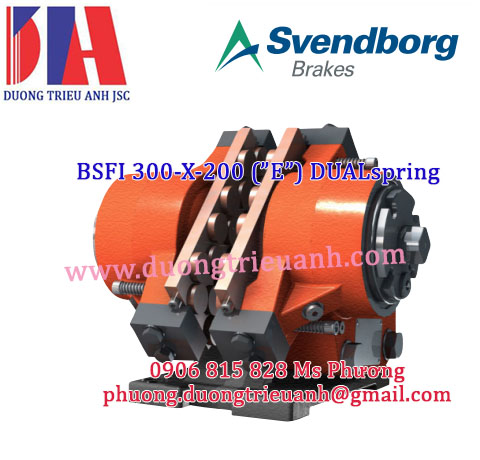

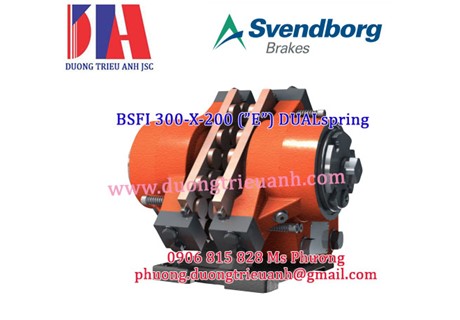

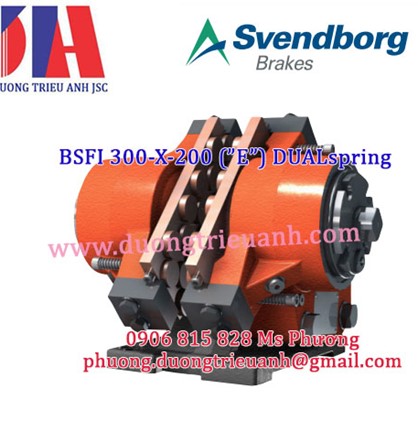

Disc Brake: BSFI 300-X-200 (”E”) DUALspring

Name: DEB-0300-016-DS-MAR

type: BSFI 317

Phanh thủy lực Svendborg	BSFI 317
Svendborg Việt Nam	BSFI 318
Svendborg Viet Nam	BSFI 320
Svendborg chinh hang	BSFI 322
Phanh thuy luc Svendborg	BSFI 325
Nha cung cap Svendborg Viet Nam	BSFI 330
Nha phan phoi Svendborg	BSFI 332
Phanh thủy lực Svendborg	BSFI 335
Svendborg Việt Nam	BSFI 340
Svendborg Viet Nam	BSFI 345
Svendborg chinh hang	BSFI 350
Phanh thuy luc Svendborg	BSFI 355
Nha cung cap Svendborg Viet Nam	BSFI 360

Thông số kỹ thuật Phanh thủy lực Svendborg BSFI 300-X-200 (”E”) lò xo kép:

Weight of caliper without bracket: Approx. 65 kg

Overall dimensions: 326 x 316 x 379 mm

Pad width: 130 mm

Pad area: (organic) 29,000 mm2 (*)

Max. wear of pad: (organic) 10 mm (*) ”(=14 mm thick)”

Pad area: (sintered) 20,000 mm2 (*)

Max. wear of pad: (sintered) 7 mm (*) ”(=17 mm thick)”

Nominal coefficient of friction: μ = 0.4

Total piston area - each caliper half: 69.1 cm2

Total piston area - each caliper: 138.2 cm2

Volume for each caliper at 1 mm stroke: 13.8 cm3

Volume for each caliper at 3 mm stroke: 41,4 cm3

Actuating time (guide value for calculation): 0.3 sec

Pressure connection/port: 1/4” BSP

Drain connection port: 1/8” BSP

Recommended pipe size: 10/8 mm

Maximum operating pressure 23.0 MPa

Operating temperature range - general from -20°C to +70°C
