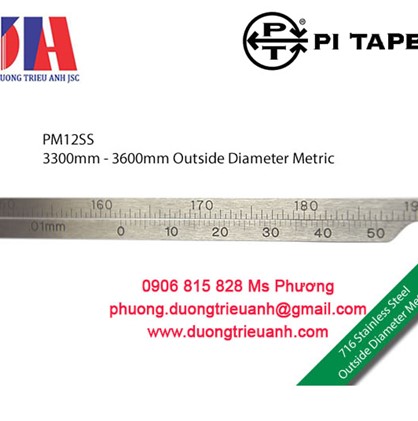

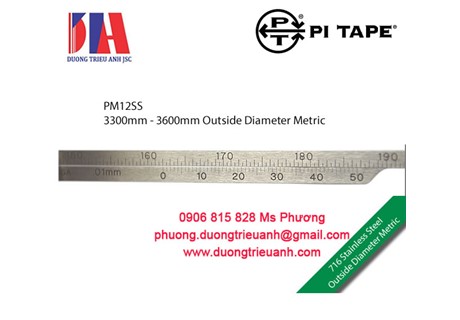

Thước đo Pitape PM12SS 3300mm - 3600mm Outside Diameter Metric USA
Thước đo Pitape đường kính ngoài PM12SS 3300mm - 3600mm (Outside Diameter Metric)
Gage Member: 6.35mm
Body Width: 12.7mm
Material: 716 Stainless Steel
Thickness: 0.25mm
Tolerance: ± .03mm
| Part # | Size | Gage Width | Thickness | Offset/Body Width |
| PM000SS | 15mm - 50mm | 6.35mm | 0.15mm | 12.7mm |
| PM0SS | 28mm - 200mm | 6.35mm | 0.15mm | 12.7mm |
| PM02SS | 28mm - 300mm | 6.35mm | 0.15mm | 12.7mm |
| PM03SS | 50mm - 300mm | 6.35mm | 0.25mm | 12.7mm |
| PM1SS | 100mm - 300mm | 6.35mm | 0.25mm | 12.7mm |
| PM1SPSS | 50mm - 600mm | 6.35mm | 0.25mm | 12.7mm |
| PM2SS | 300mm - 600mm | 6.35mm | 0.25mm | 12.7mm |
| PM2SPSS | 300mm - 900mm | 6.35mm | 0.25mm | 12.7mm |
| PM3SS | 600mm - 900mm | 6.35mm | 0.25mm | 12.7mm |
| PM3SPSS | 600mm - 1200mm | 6.35mm | 0.25mm | 12.7mm |
| PM4SS | 900mm - 1200mm | 6.35mm | 0.25mm | 12.7mm |
| PM5SS | 1200mm - 1500mm | 6.35mm | 0.25mm | 12.7mm |
| PM6SS | 1500mm - 1800mm | 6.35mm | 0.25mm | 12.7mm |
| PM7SS | 1800mm - 2100mm | 6.35mm | 0.25mm | 12.7mm |
| PM8SS | 2100mm - 2400mm | 6.35mm | 0.25mm | 12.7mm |
| PM9SS | 2400mm - 2700mm | 6.35mm | 0.25mm | 12.7mm |
| PM10SS | 2700mm - 3000mm | 6.35mm | 0.25mm | 12.7mm |
| PM11SS | 3000mm - 3300mm | 6.35mm | 0.25mm | 12.7mm |
| PM12SS | 3300mm - 3600mm | 6.35mm | 0.25mm | 12.7mm |
