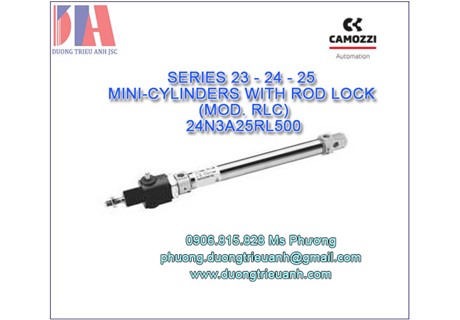

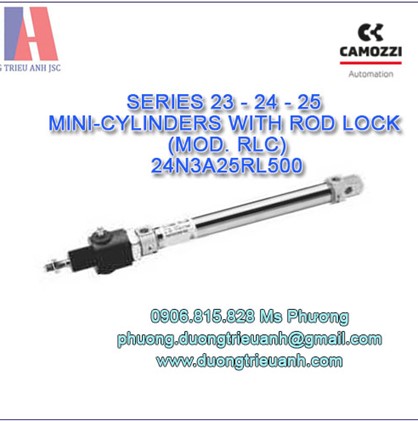

Camozzi 24N3A25RL500 Series 23 - 24 - 25 mini-cylinders with rod lock

Type of construction    crimped
Operation    single-acting and double-acting
Materials    anodized aluminium end-caps - stainless steel barrel and rod, aluminium piston - NBR/PU seals, other parts: see the coding example
Brackets    rod end - flange - feet - trunnion
Stroke min - max    Series 16 ø 8 ÷ ø 10: 10 - 250 mm / Series 16: ø 12: 10 - 300 mm / Series 24 & 25 ø 16: 10 - 600 mm; ø 20 - ø 25: 10 - 1000 mm
Bores    Series 16: ø 8, 10, 12 / Series 24 & 25: ø 16, 20, 25
Operating temperature    0°C ÷ 80°C (with dry air -20°C)
Operating pressure    1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting)
Fluid    filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32.
Once applied the lubrication should never be interrupted.
Speed    10 ÷ 1000 mm/sec (without load)
