Cáp cảm biến Phoenix contact 1694648 - SAC-5P-M12MS / 0,6-PUR / M12FR-3L
Cáp cảm biến Phoenix contact 1694648 - SAC-5P-M12MS / 0,6-PUR / M12FR-3L

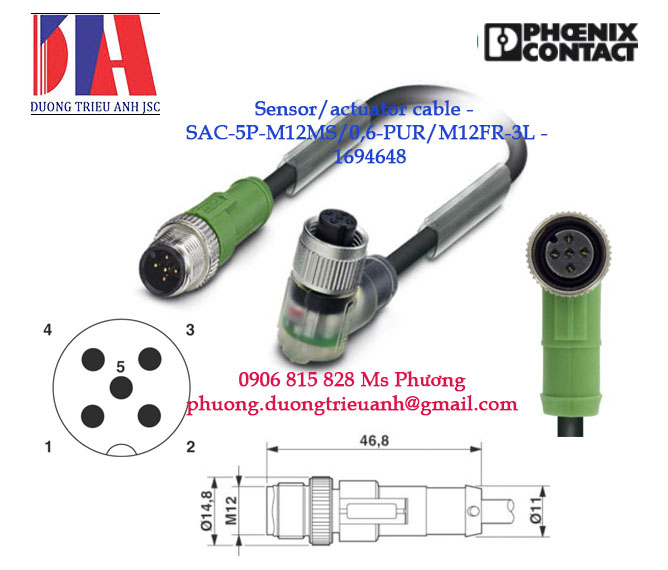

Sensor/actuator cable Phoenix contact 1694648, 5-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, on Socket angled M12, coding: A, with 3 LEDs, cable length: 0.6 m
Giá :
Liên hệ
Cáp cảm biến - thiết bị truyền động Phoenix contact 1694648, có 5 vị trí, không có halogen PUR, màu đen xám RAL 7021, Cắm thẳng M12, mã hóa: A, trên Socket M12 có góc cạnh, mã hóa: A, có 3 đèn LED, chiều dài cáp: 0,6 m
Thông số của cảm biến Phoenix contact 1694648:
Orderkey : 1694648
Packing unit: 1 pc
Sales key 02 -
Note: Made to Order (non-returnable)
Catalog page: Page 201 (C-2-2019)
GTIN 4017918459239
Weight per Piece (excluding packing): 38.700 g
Weight per piece (including packing): 38.700 g
Custom tariff number: 85444290
Rated current at 40°C 4 A
Rated voltage 24 V DC
Number of positions 5
Insulation resistance ≥ 100 MΩ
Coding A - standard
Standards/regulations M12 connector IEC 61076-2-101
Status display 3 LEDs
