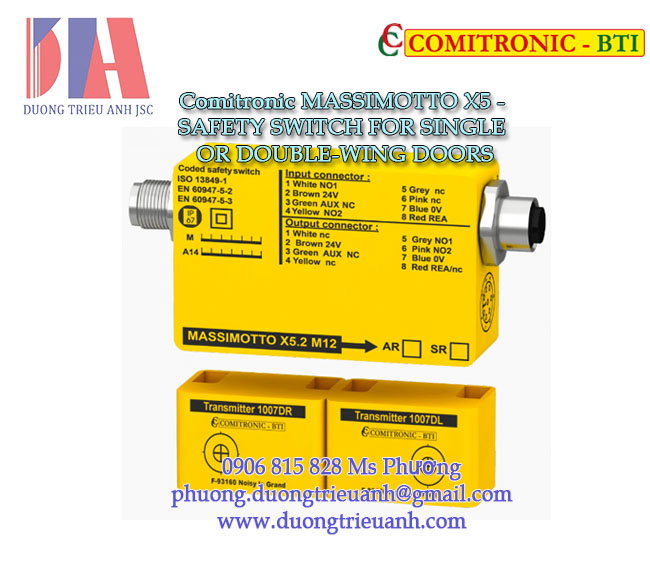

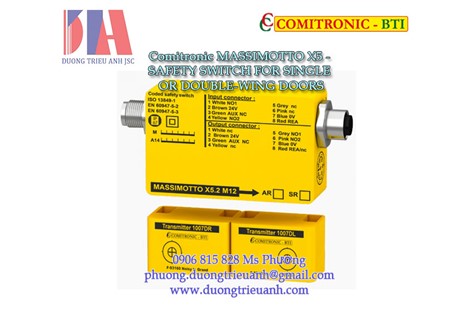

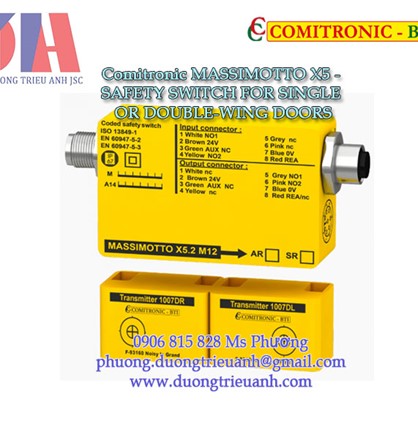

Công tắc an toàn Comitronic-BTI MASSIMOTTO-X5 | Comitronic MASSIMOTTO X5 - Safety Switch for single or double-wing doors

• Level of performance without an external controller: PL = d
• Level of performance with AWAX controller: up to PL = e
• Safety category without an external controller: 3
• Safety Integrity Level: SIL 2
• Cycle before dangerous failure: B10d = 2,000,000 at 2A
• Max. activation distance: 8 mm, 3 mm hysteresis
• Safety contacts/diagnostics: 2 x NO 2A/48V redundant / 1 x PNP 250mA (X5) or 1xNF (X5.2) auxiliary
• Detection encoding: mono-code inviolable
• Indicator: LED indicates code recognition
• Reset: automatic (SR version) or Manual (AR version)
• Attachment: 4 tamper-proof M4 screws (optional ref: BH4). Suitable for grooved profiles. Screw caps provided.
• Mounting position: 1
• Material: Polycarbonate
• Electrical connection: 1 M12 connector (X5 version) or 2 M12 connectors (X5.2 version for instant serial connection)
• Water resistance: IP 67/68
• Temperature: -25°C to +60°C
• Marking: screen printed + serial no. for traceability
• Certification: TÜV Rheinland 01/205/5238/12
• License Test Mark 968/EL 214.01/12

Ngoài ra còn có model khac để chúng ta lựa chọn phù hợp:
